Wheel loader buckets

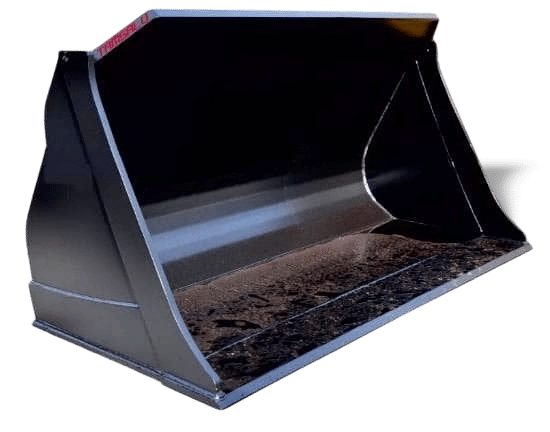

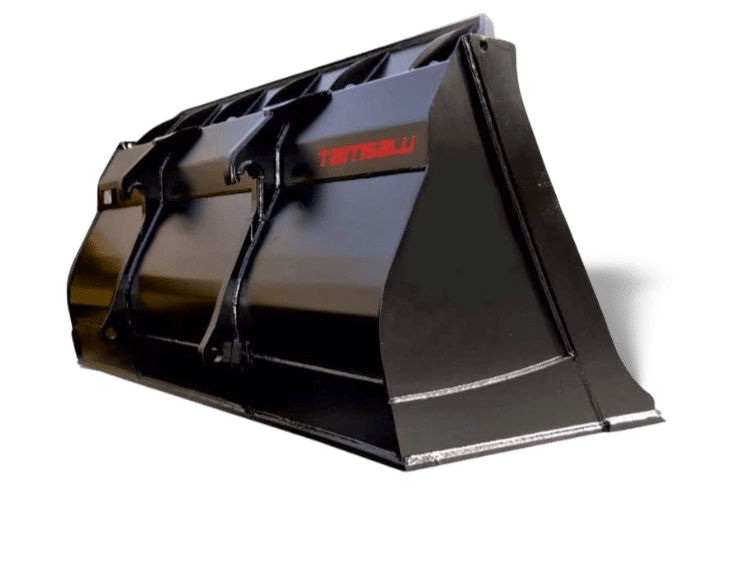

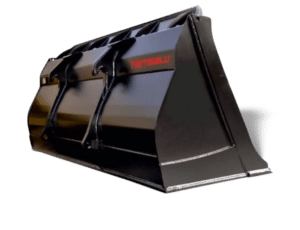

Reinforced wheel loader buckets – designed for efficient bulk material handling and heavy-duty loading.

Heavy-Duty Wheel Loader Buckets for Maximum Throughput

Wheel loader buckets are critical tools in quarries, terminals, and large-scale agricultural enterprises, where success is measured in tons moved and cycle speed.

Tamsalu wheel loader buckets are engineered to withstand heavy pressure and abrasive wear while ensuring optimal bucket filling. Our bucket geometry promotes the rapid rolling of material into the interior, which reduces fuel consumption and saves tires due to lower resistance during loading. By using high-strength HB500 wear-resistant steel in the cutting edge and bottom reinforcements, we provide a solution that maintains its geometry and precision even under the most intensive operating conditions.

Proven Reliability
Certified Wear Steel
Standard Quick Couplers
Responsive Customer Support

Technical Features

Optimized Bucket Shape
Designed to ensure maximum filling and rapid discharge, shortening loading cycles by up to 15%.
HB500 Wear Protection
The cutting edge and high-wear side surfaces are manufactured from specialty steel to ensure a long service life in abrasive environments.
Reinforced Frame and Bottom
A double-bottom and structural reinforcements prevent the bucket from deforming when working with high loads and torsional forces.

Wheel Loader Buckets

Move More, Save More

Engineered for high-volume material handling, our wheel loader buckets feature HB500 steel protection and a streamlined design. Achieve faster loading cycles and reduced tire wear with our low-resistance bucket geometry.

Technical Specifications

Name Volume, L Machine class Blade dimension (mm) A (mm) C (mm) D (mm) Weight (kg)
KFN1100HD 1100 20 x 200 x L2042 478
KFN1200HD 1200 20 x 200 x L2240 508
KFN2200HD 2200 30 x 300 x L2750 1100
KFN2500HD 2500 30 x 300 x L2750 1170
KFN3000HD 3000 35 x 300 x L2750 1450
KFN3500HD 3500 40 x 300 x L3000 1685
