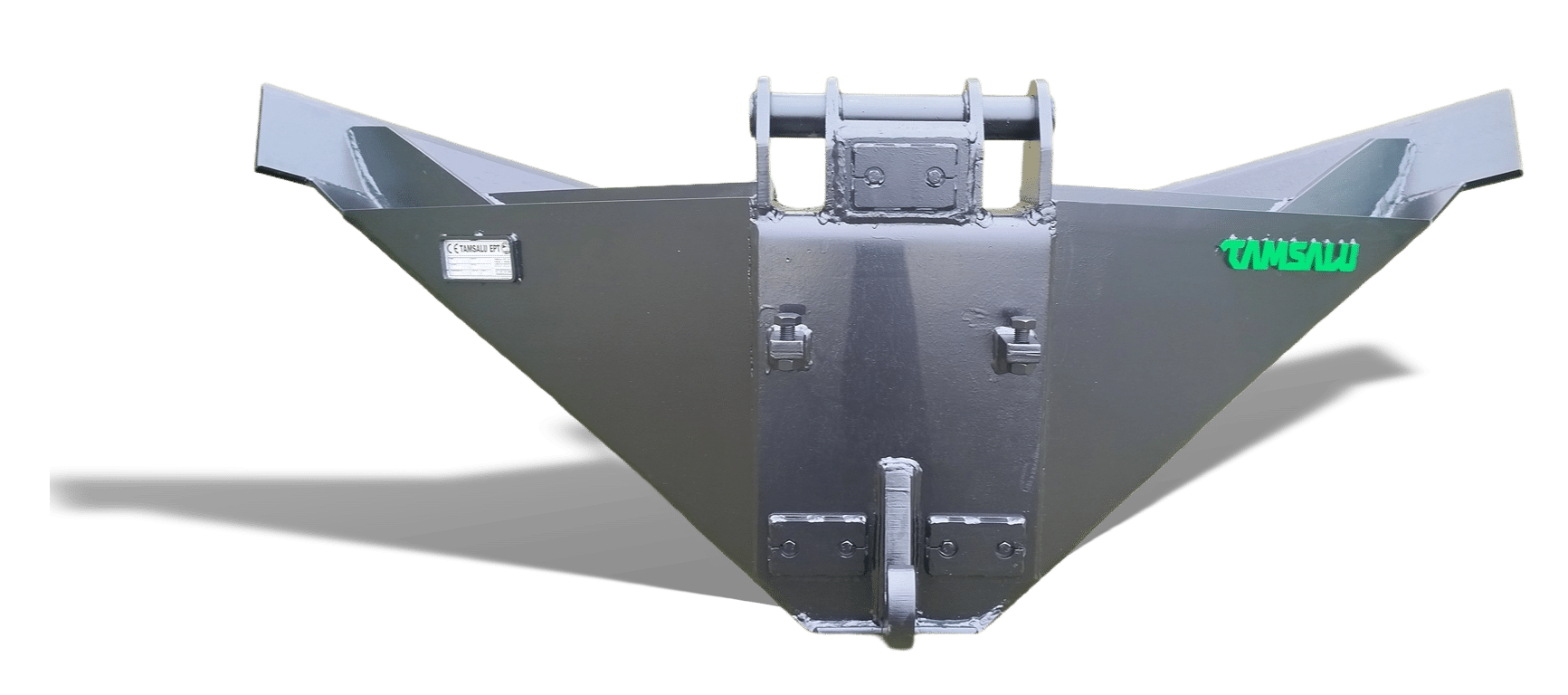

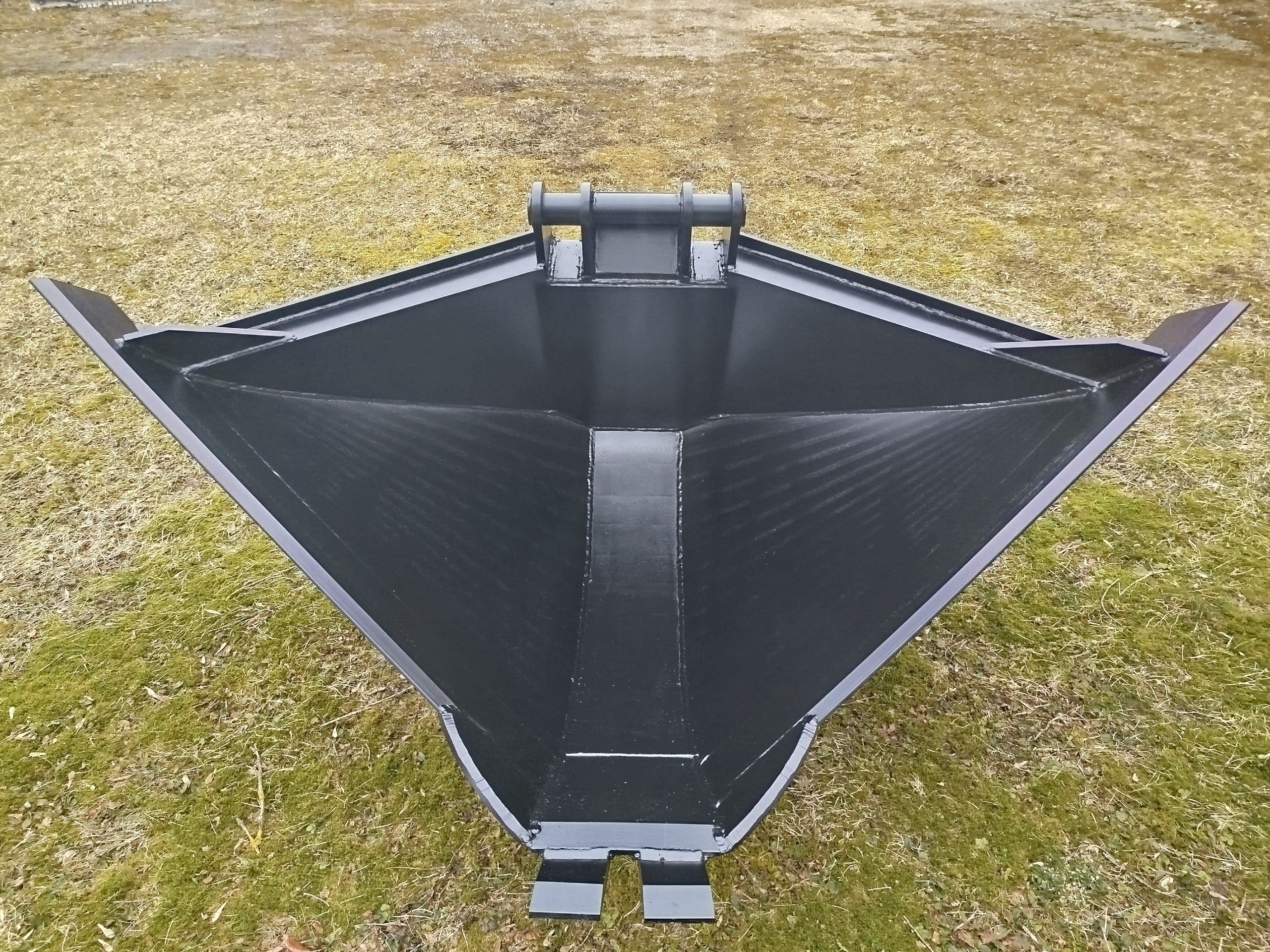

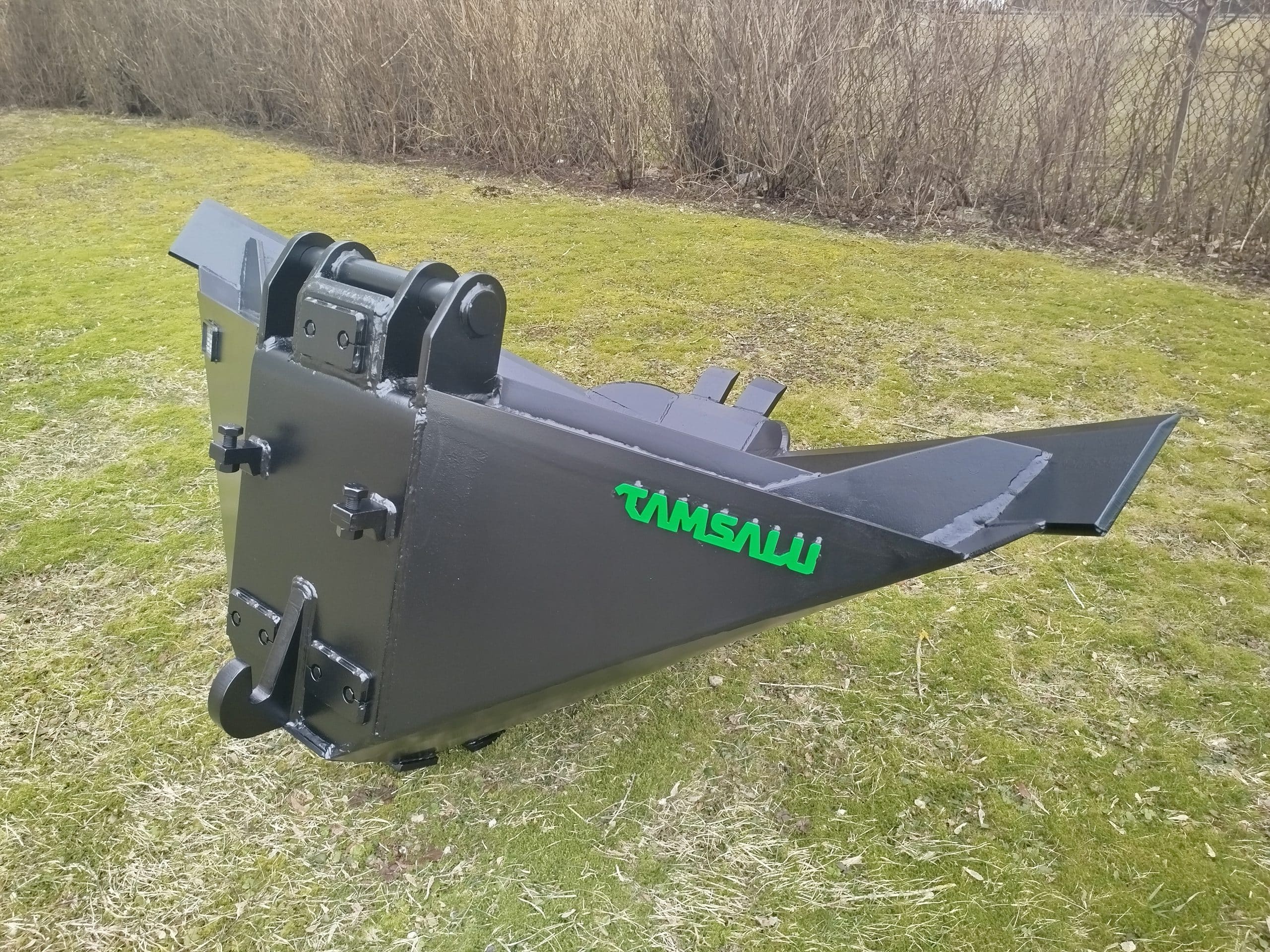

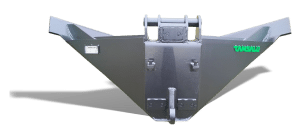

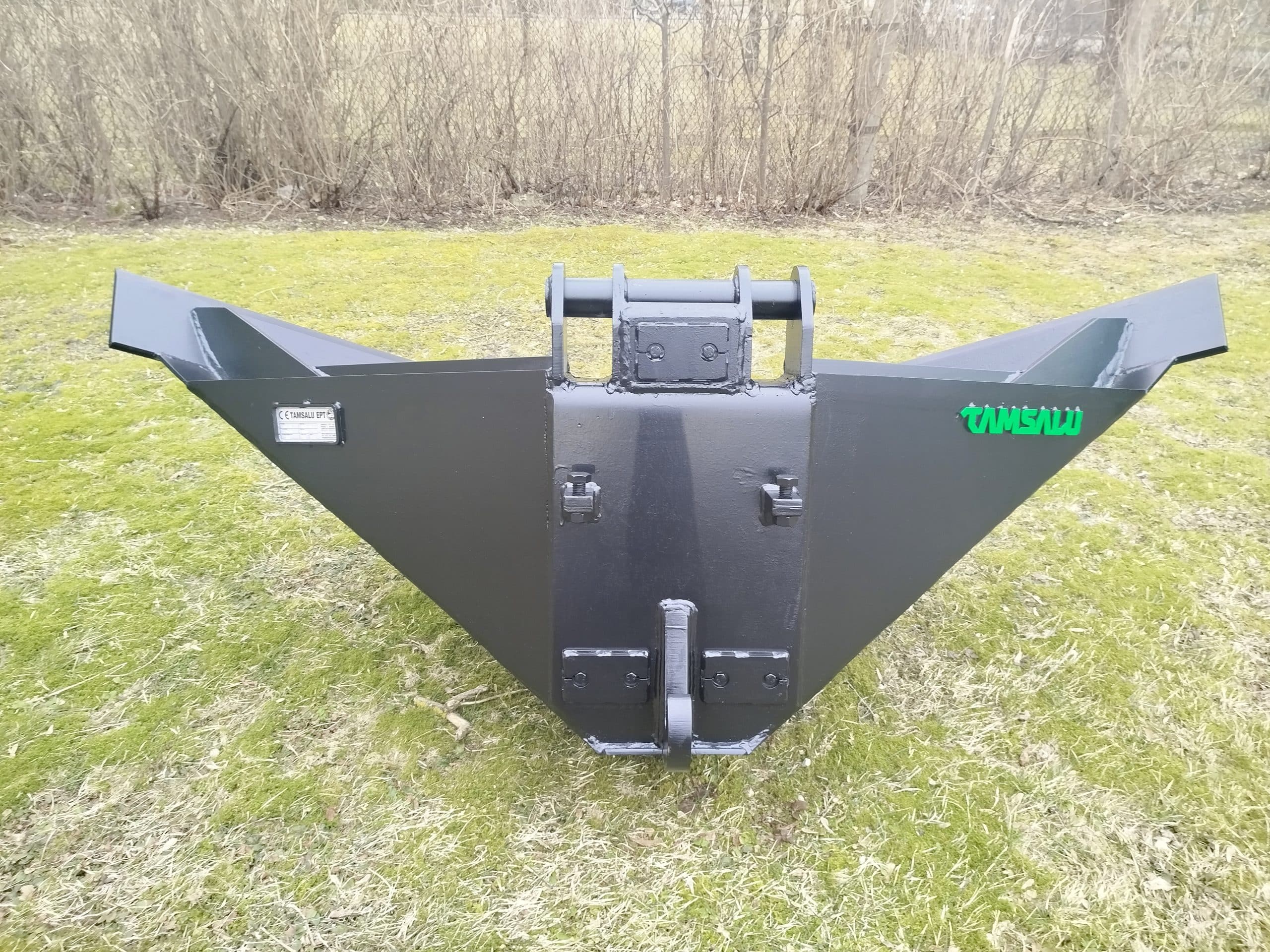

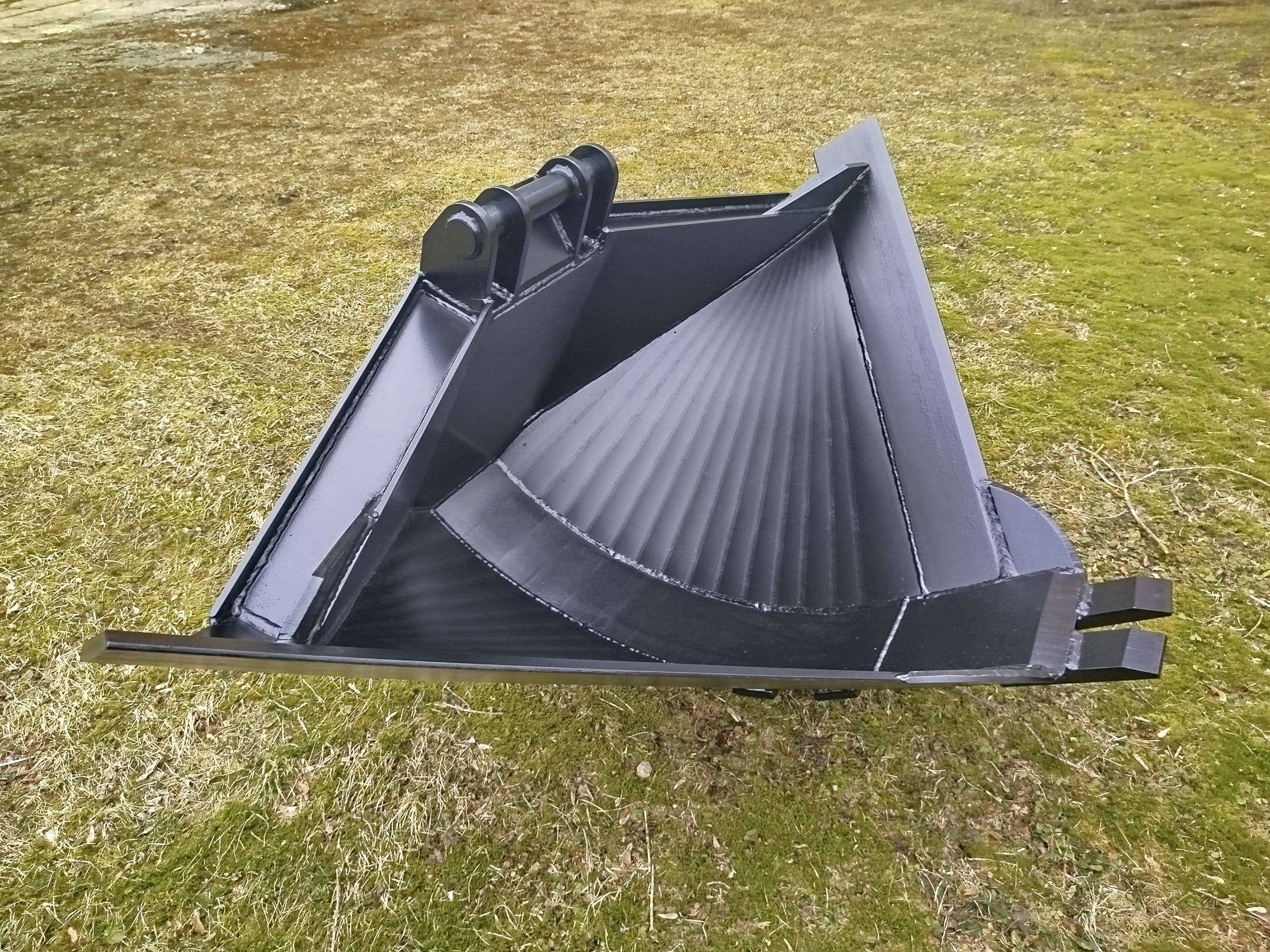

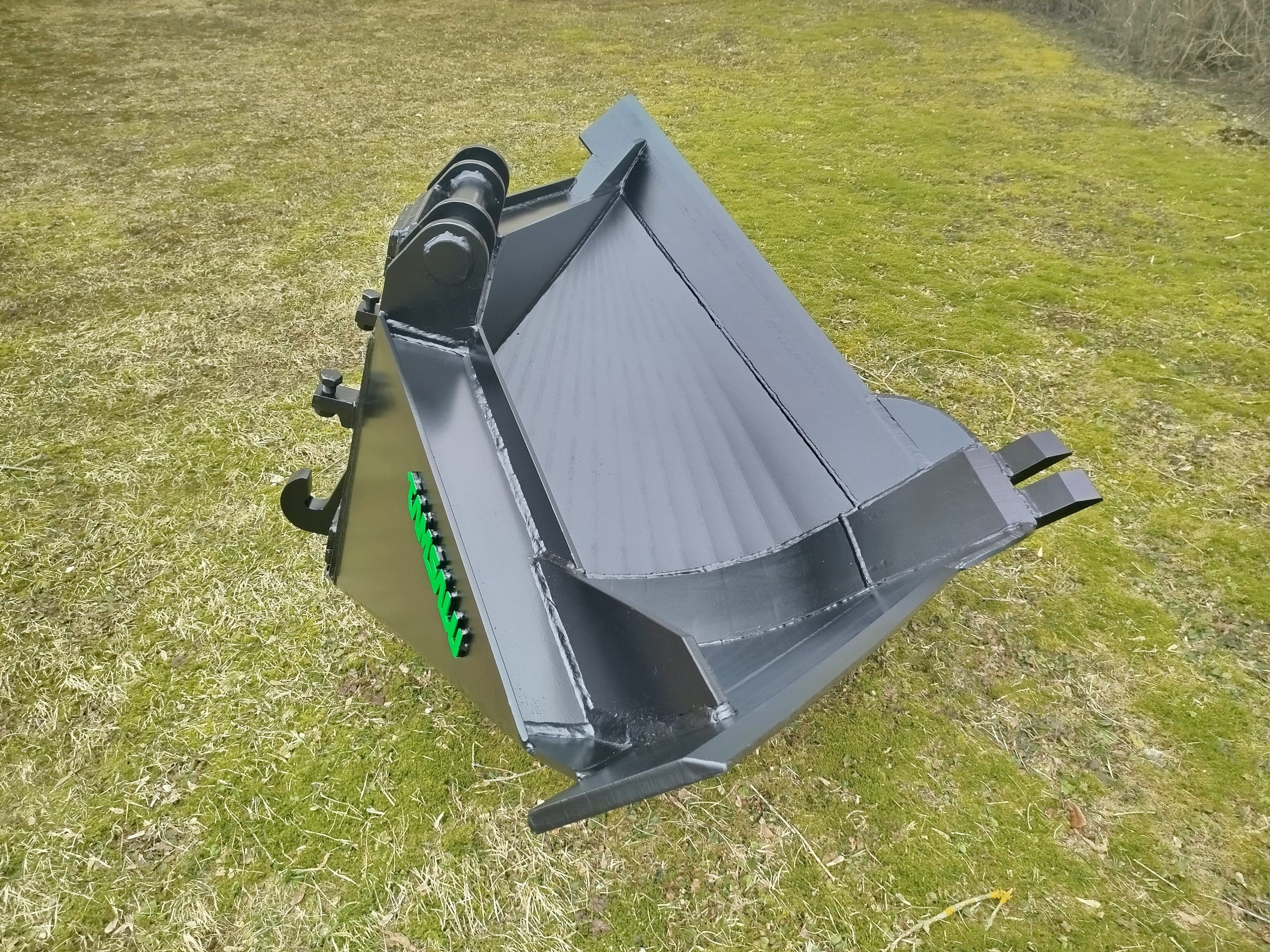

V-ditch buckets

Professional V-ditch buckets for agricultural drainage and peatland reclamation.

Tamsalu V-ditch buckets are specifically engineered for the creation and maintenance of drainage systems in both agricultural fields and challenging peatlands.

Our V-ditch buckets are designed to produce a precise, stable trapezoidal profile in a single pass. When working on soft peat or heavy agricultural soil, the bucket’s optimized wing geometry ensures that ditch banks are compacted and angled correctly to prevent erosion and collapse. Built with high-strength HB450/500 wear-resistant steel, these buckets combine maximum durability with a profile that minimizes digging resistance, helping you save on fuel and reduce machine wear during large-scale reclamation projects.

Proven Reliability
Certified Wear Steel
Standard Quick Couplers
Responsive Customer Support

Technical Features

Optimized V-Profile Geometry
Engineered to create the ideal trapezoidal ditch shape, ensuring optimal water flow and long-term bank stability in varied soil conditions.
HB450/500 Wear-Resistant Steel
The cutting edge and high-wear side sections are reinforced with premium steel to withstand abrasive materials and heavy loads in demanding environments.
Hardox
High-Efficiency Smoothing Wings
The extended side wings allow for the finishing of ditch edges in a single movement, significantly reducing the need for secondary bank stabilization.

V-Ditch Buckets

Perfect Profiles in a Single Pass

Designed for precision land reclamation, our V-ditch buckets create stable, clean-cut agricultural and peatland ditches. Achieve professional trapezoidal profiles with reduced fuel consumption and maximum wear resistance.

Technical Specifications

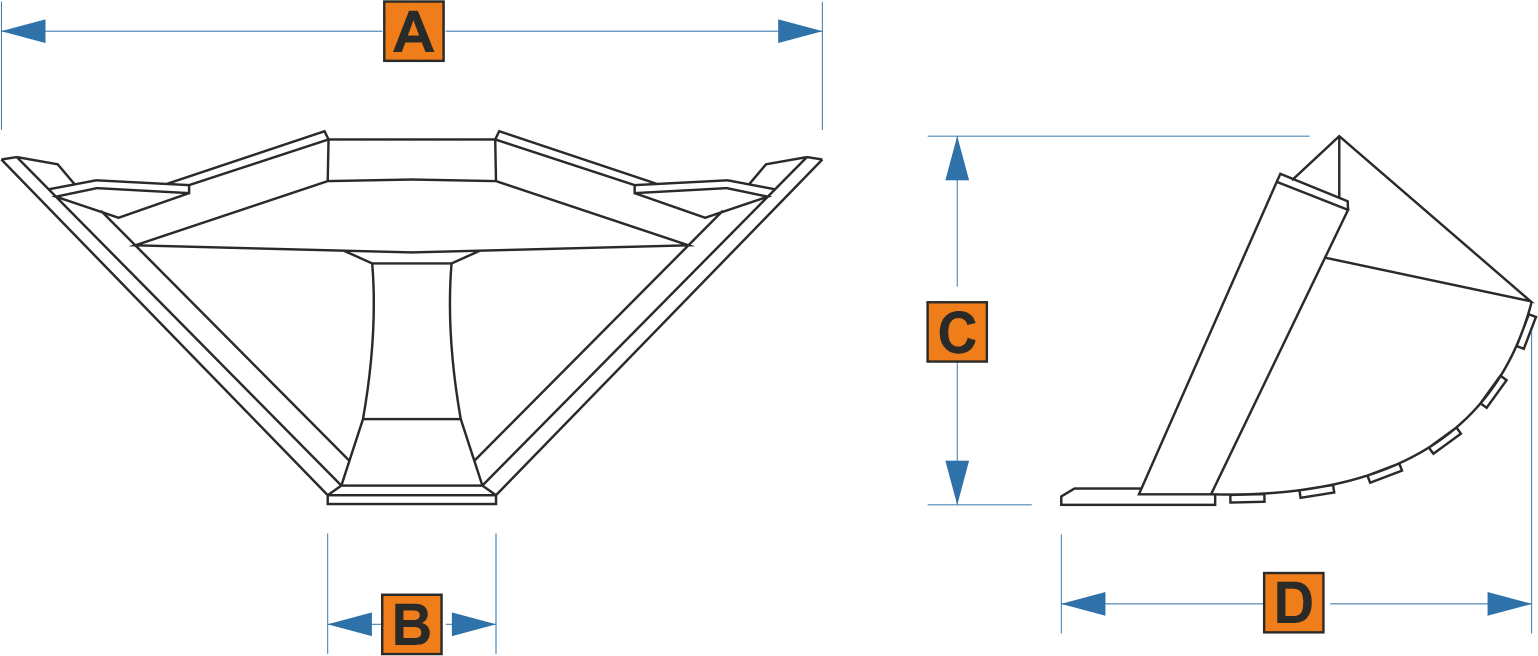

Name Volume, L Machine class Blade A (mm) C (mm) D (mm) Weight (kg) Teeth
KV300-HX 300 2,5 – 10t. 20 x 250 x L300 1670 710 900 220 Yes
KV400-HX 400 2,5 – 10t. 20 x 250 x L300 1715 870 970 250 Yes
KV550-HX 550 13 – 20t. 30 x 350 x L300 2050 1200 1100 437 Yes
KV550-CAT 550 13 – 20t. 30 x 350 x L300 2035 1200 1100 435 Yes
KV850-HX 850 13 – 20t. 30 x 370 x L300 2350 1370 1550 616 Yes
KV850-CAT 850 13 – 20t. 30 x 370 x L300 2350 1370 1550 615 Yes
KV900-HX 900 13 – 25t. 30 x 370 x L340 1520 1250 1050 1050 Yes
