Utility buckets

Utility Buckets Maximum depth with minimum soil displacement

Utility Buckets – Efficiency in every centimeter

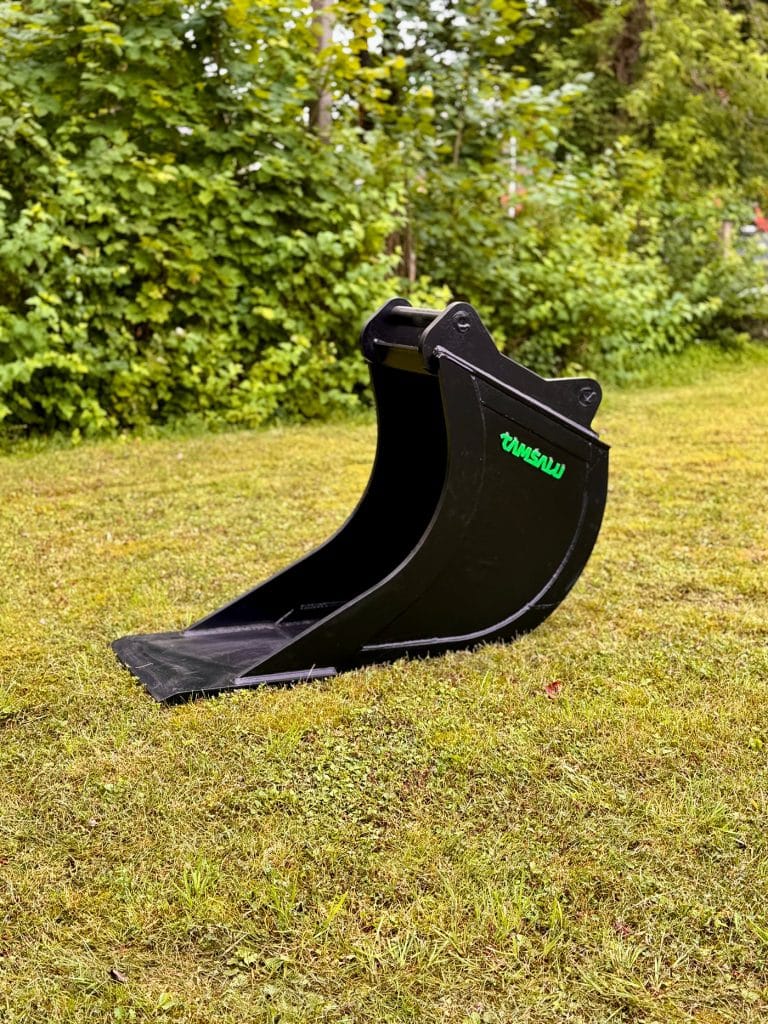

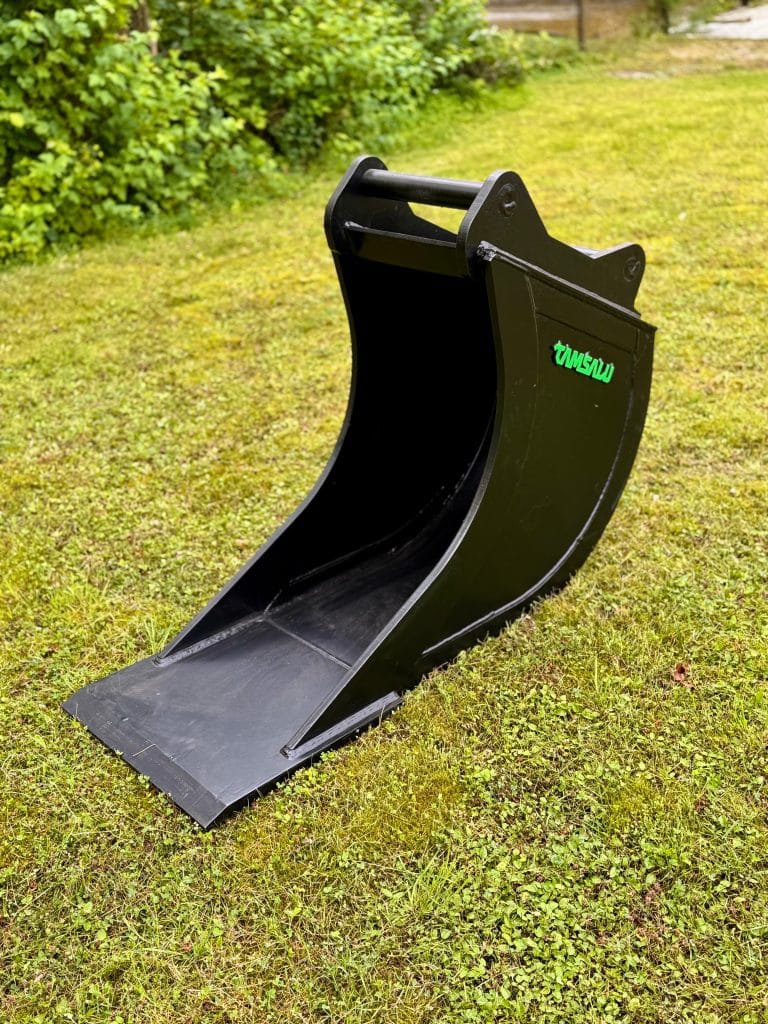

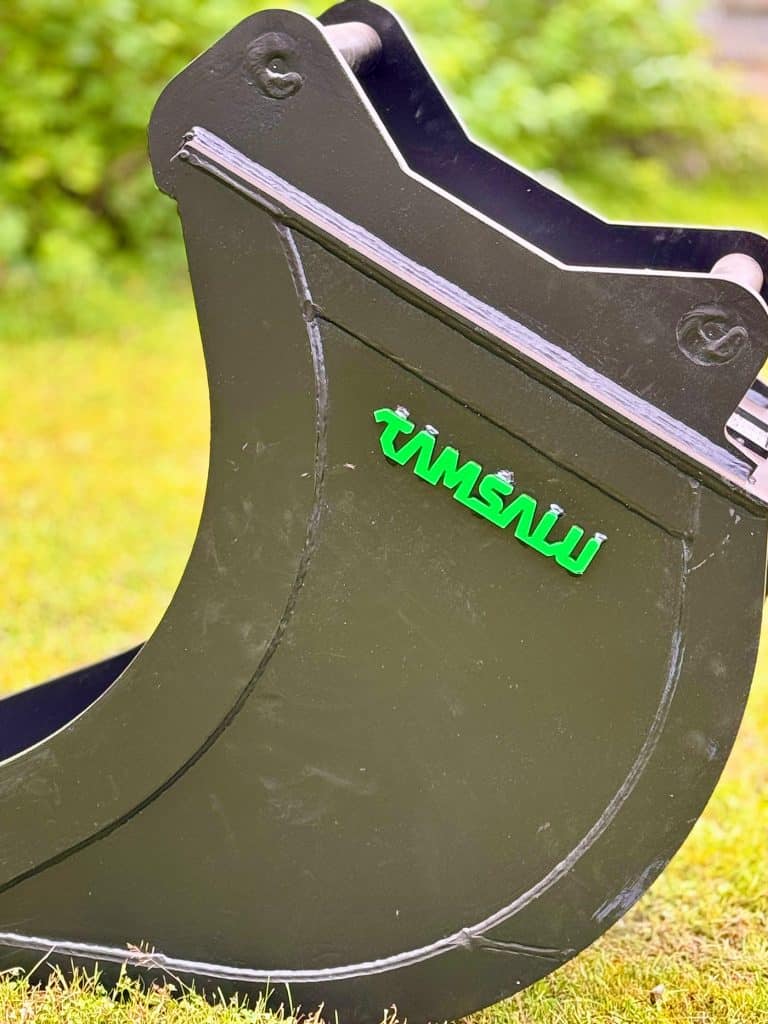

Tamsalu narrow digging buckets are designed for professionals who value precision and cost-effectiveness. Unlike standard buckets, our narrow digging buckets are engineered with a long, slender profile that allows for deep trenching without unnecessarily breaking the trench edges. This is an indispensable tool for installing drainage, excavating around foundations, and working in tight urban spaces where maneuvering room is limited.

Proven Reliability
Certified Wear Steel
Standard Quick Couplers
Responsive Customer Support

Technical Features

Geometry Optimized for Deep Excavation
The long “nose” and narrow profile allow the bucket to reach between obstacles and deep into trenches while maintaining optimal filling capacity.
HB450/HB500 Wear Plates
The entire floor and side cutters are reinforced with high-strength wear-resistant steel to withstand heavy pressure and abrasive soil.
Self-Cleaning Design
The internal geometry tapers slightly outward toward the rear, ensuring that wet clay and soil discharge quickly—meaning less “empty lifting” and more actual productivity.

Utility Buckets

Precision Excavation in Tight Spaces

Engineered for maximum depth and minimal soil displacement, our narrow digging buckets feature an optimized profile and HB450/HB500 wear plates. Ideal for drainage, utility lines, and urban construction where precision and fuel efficiency are key.

Technical Specifications

Name Volume, L Machine class Blade A (mm) C (mm) D (mm) Weight (kg) Teeth
KKN55 55 1,5 – 2,5t. / 2,5 – 5t. 16 x 150 x L320 251 454 725 52
KKN120HD 120 2,5 – 5t. 20 x 155 x L440 338 657 945 105
KKN180 180 5 – 10t. 20 x 140 x L470 380 752 1198 160
KKN370 370 13 – 20t. 25 x 200 x L600 550 919 1354 295
KKN600 600 20 – 25t. 35 x 270 x L660 606 1115 1718 525
