Digging buckets

Reinforced universal buckets for efficient earthmoving in any environment.

Heavy-Duty Digging Buckets for Maximum Productivity

Tamsalu digging buckets are engineered to endure the most demanding jobsites. While standard buckets wear out quickly in abrasive soils, our design focuses on structural rigidity and premium material selection.

Our digging buckets are more than just containers for moving earth—their optimized geometry ensures low digging resistance. This allows the excavator to penetrate the ground more easily, reducing fuel consumption and minimizing strain on the machine’s hydraulic system. We use high-strength HB450/500 wear-resistant steel in all critical areas (the cutting edge, side cutters, and bottom wear strips), significantly extending the bucket’s service life.

Proven Reliability

Certified Wear Steel

Standard Quick Couplers

Responsive Customer Support

Technical Features

Enhanced Filling Capacity

The bucket’s shape promotes the rapid rolling of soil into the interior, ensuring maximum volume is filled during every cycle.

Flexible Tooth Systems

We supply buckets with either interchangeable teeth (for heavy soils) or a smooth cutting edge (for precision work and grading).

Certified Quality

All welded joints are performed according to ISO standards, ensuring resistance to breakage even at extreme temperatures.

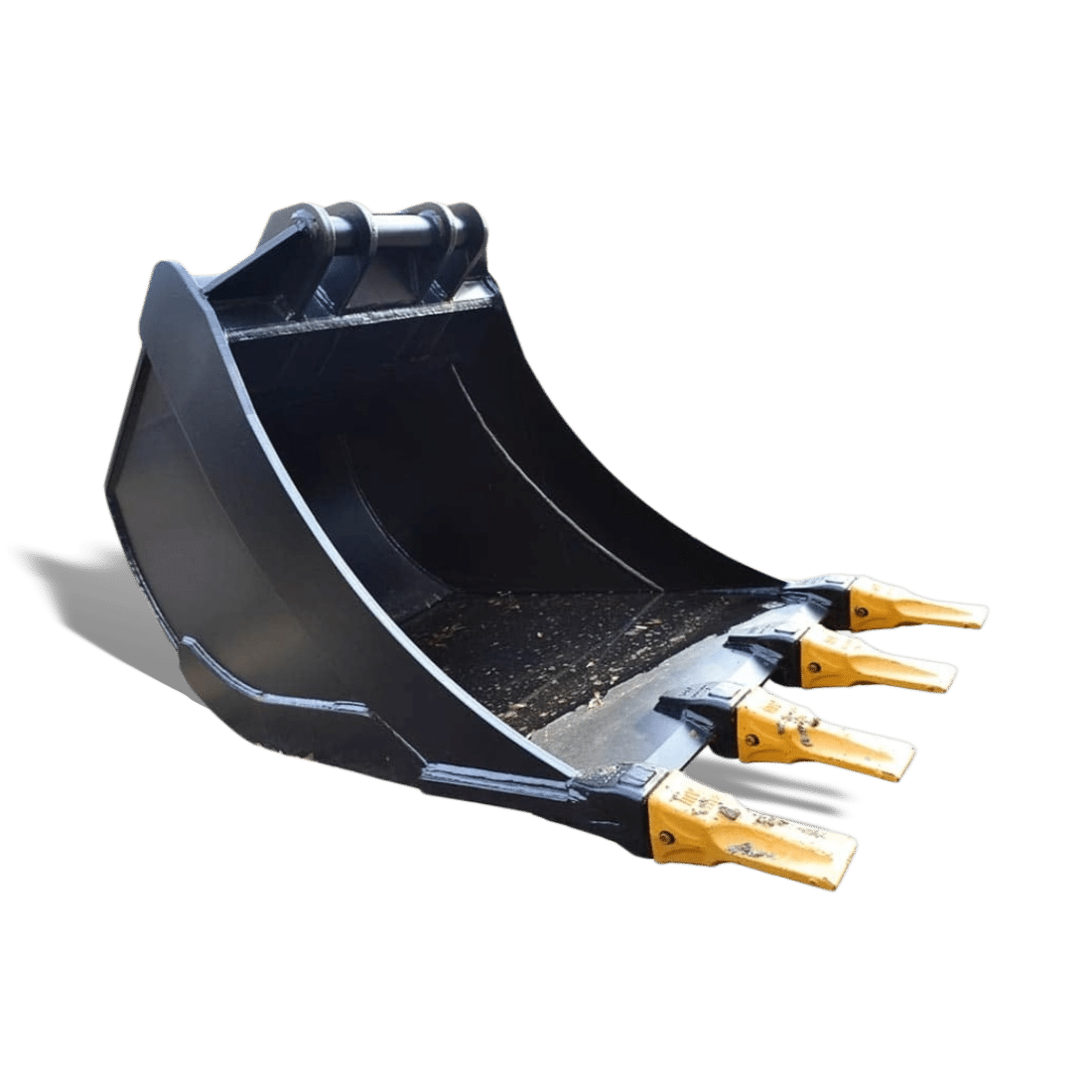

Universal Digging Buckets

Maximum Power for Every Scoop

Reinforced digging buckets designed for low resistance and high durability. Featuring HB450/500 wear plates and ISO-certified welding to handle the toughest abrasive conditions.

Technical Specifications

Machine class up to 7t

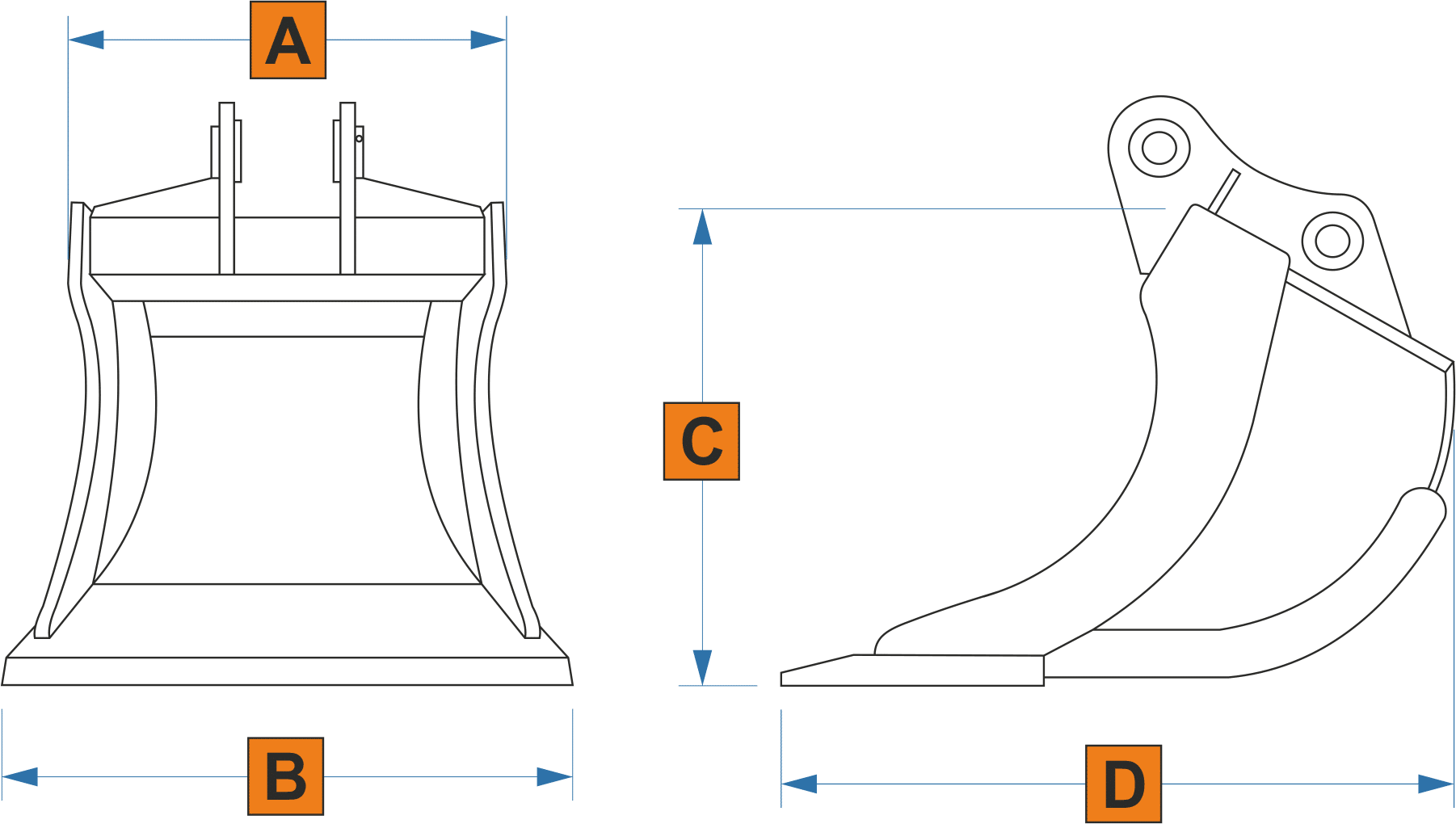

Code	Volume, L	Machine weight	Blade dimension, mm	A (mm)	C (mm)	D (mm)	Weight, kg	Teeth
KK90	90	2,0 – 5t.	16 x 150 x L250	395	500	800	75	–
KK90	90	2,0 – 5t.	20 x 125 x L520	443	529	812	79	–
KK90-CAT	90	2,0 – 5t.	20 x 125 x L520	443	529	812	87	Yes
KK145	145	3,5 – 5t.	20 x 150 x L520	435	648	784	96	–
KK145-CAT	145	3,5 – 5t.	20 x 150 x L520	435	648	798	104	Yes
KK165	165	3,5 – 5t.	20 x 150 x L600	515	648	784	110	–
KK165-CAT	165	3,5 – 5t.	20 x 150 x L600	515	648	798	122	Yes
KK175	175	2,5 – 5t.	20 x 200 x L800	120	740	1020	144	–
KK175-CAT	175	2,5 – 5t.	20 x 200 x L800	120	740	1020	156	Yes
KK185	185	3,5 – 5t.						–
KK185-CAT	185	3,5 – 5t.						Yes
KK250	340	5 – 7t.	25 x 250 x L800	730	591	1020	273	–
KK250-CAT	340	5 – 7t.	25 x 250 x L800	730	601	1020	286	Yes

Machine class from 8t

Code	Volume, L	Machine weight	Blade dimension, mm	A (mm)	C (mm)	D (mm)	Weight, kg	Teeth
KK260	260	6 – 8t.	25 x 200 x L650	557	753	939	160	–
KK260-CAT	260	6 – 8t.	25 x 200 x L650	557	753	963	160	Yes
KK320	320	6 – 8t.	25 x 250 x L820	739	768	990	215	–
KK320-CAT	320	6 – 8t.	25 x 200 x L870	739	783	1014	225	Yes
KK400	400	8 – 13t.	25 x 350 x L830	760	795	1267	271	–
KK400-CAT	400	8 – 13t.	30 x 200 x L870	760	795	1288	294	Yes
KK700	700	14 – 17t.	35 x 300 x L1000	935	1000	1229	499	–
KK700-CAT	700	14 – 17t.	35 x 300 x L1000	935	1000	1447	581	Yes
KK800	800	14 – 17t.	35 x 300 x L1100	1035	1091	1246	495	–
KK800-CAT	800	14 – 17t.	35 x 300 x L1100	1035	1121	1464	610	Yes
KK1200	1200	23 – 25t.	40 x 400 x L1300	1240	1136	1567	951	–
KK1200-CAT	1200	23 – 25t.	40 x 300 x L1360	1240	1182	1620	1015	Yes
KK1400	1400	24 – 28t.	50 x 500 x L1380	1260	1150	1682	1130	–
KK1400-CAT	1400	24 – 28t.	50 x 400 x L1480	1260	1201	1748	1238	Yes
KK1700-CAT	1700	28 – 32t.	50 x 500 x L1650	1430	1241	1967	1567/1590	Yes
