Design buckets with welded adapters

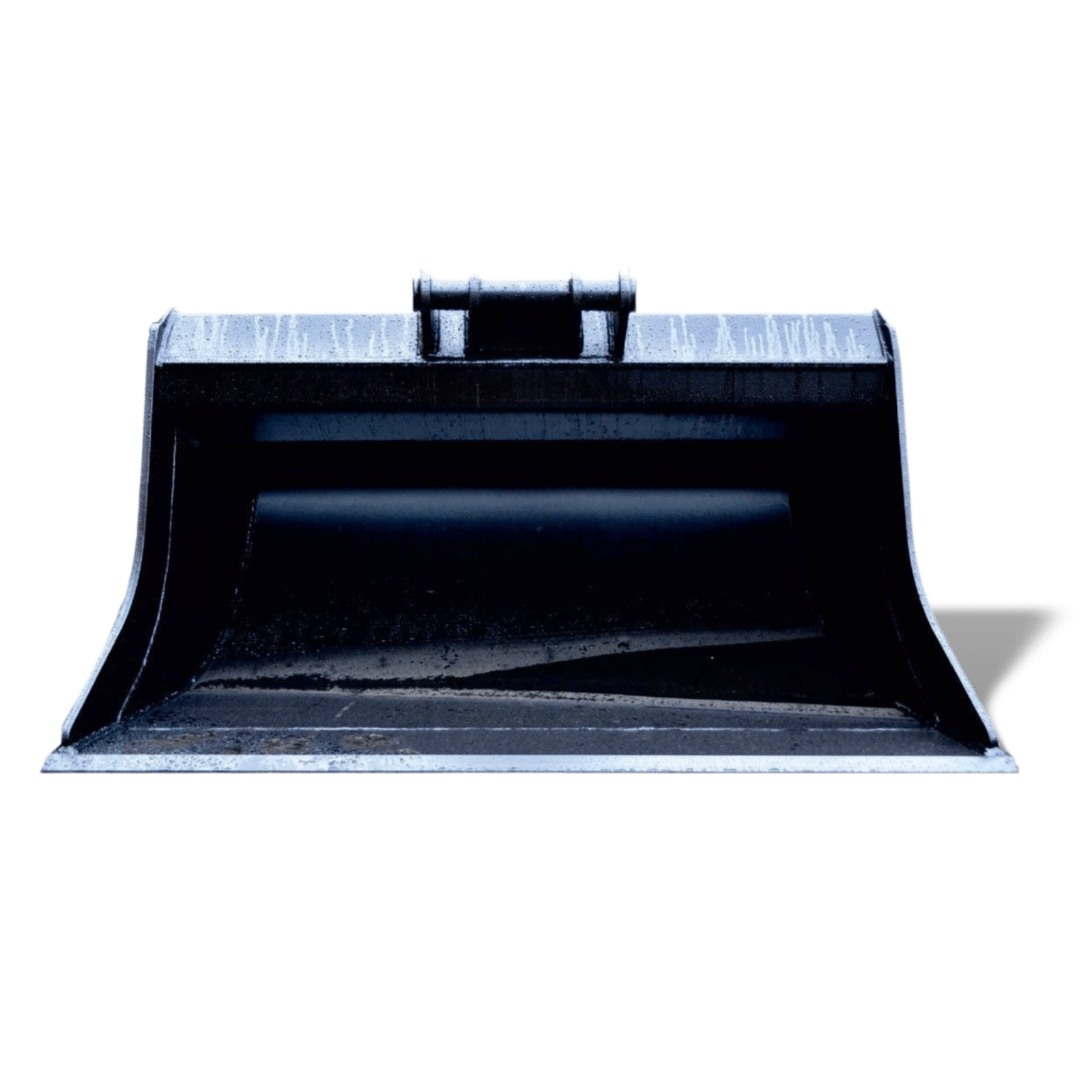

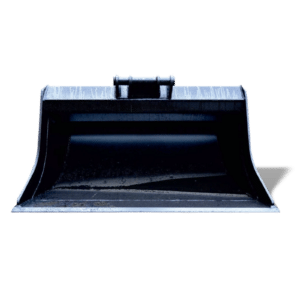

Tamsalu EPT - Jäik planeerimiskopp

Quality rigid design buckets for excavators. Strong construction ensures precise soil grading and leveling work. Rigid grading buckets are tools with a simple and durable construction used for leveling soil, finishing, and moving smaller amounts of materials. Unlike tiltable buckets, these are stationary and do not allow tilting of the working position.

Rigid grading buckets

Durable, reliable, and cost-effective
Rigid grading buckets are an ideal choice when the job requires a strong and reliable solution for large-scale leveling and finishing work.

Design buckets with welded adaptersTechnical specifications

Machine class up to 5t.

Name Volume, L Machine class Blade Hitch type Weight
KP55HD 55 1,5-2,5t. 12*100*L830 S30 48
KP75HD 75 1,5-2,5t. 12*100*L1040 S30 55
KP90HD 90 1,5-2,5t. 12*100*L1000 S30 65
KP125HD 125 2,5-5t. 12*100*L1000 S40 90
KP150 150 2,5-5t. 20*200*L1080 S40 130
KP175 175 2,5-5t. 20*200*L1080 S40 160
KP190 190 2,5-5t. 20*200*L1080 S40 170
KP220 220 2,5-5t. 20*200*L1080 S40 185
KP240 240 2,5-5t. 20*200*L1080 S40 190

Machine class up to 8,5t – 25t.

Name Volume, L Machine class Blade Hitch type Weight
KP270 270 5-10t. 16*150*L1220 S45 220
KP350 350 5-10t. 20*200*L1330 S45 250
KP550 550 13-20t. 30*270*L1450 NTP10/S60 530
KP650 650 13-20t. 30*270*L1550 NTP10/S60 660
KP900 900 13-20t. 30*270*L1700 NTP10/S60 720
KP1100 1100 13-25t. 30*270*L1900 NTP10/S60 830
KP1270 1270 13-25t. 40*320*L2200 NTP10/S60 1012
