Cable trench buckets

Tamsalu EPT - Kaablikraavikopad
Tamsalu EPT - Kaablikraavikopad

Cable trench buckets are special-purpose buckets used on excavators or other digging machines.

Features:

  • Narrow and deep shape.
  • Reinforced steel construction.
  • Various sizes.
  • Mounting options.

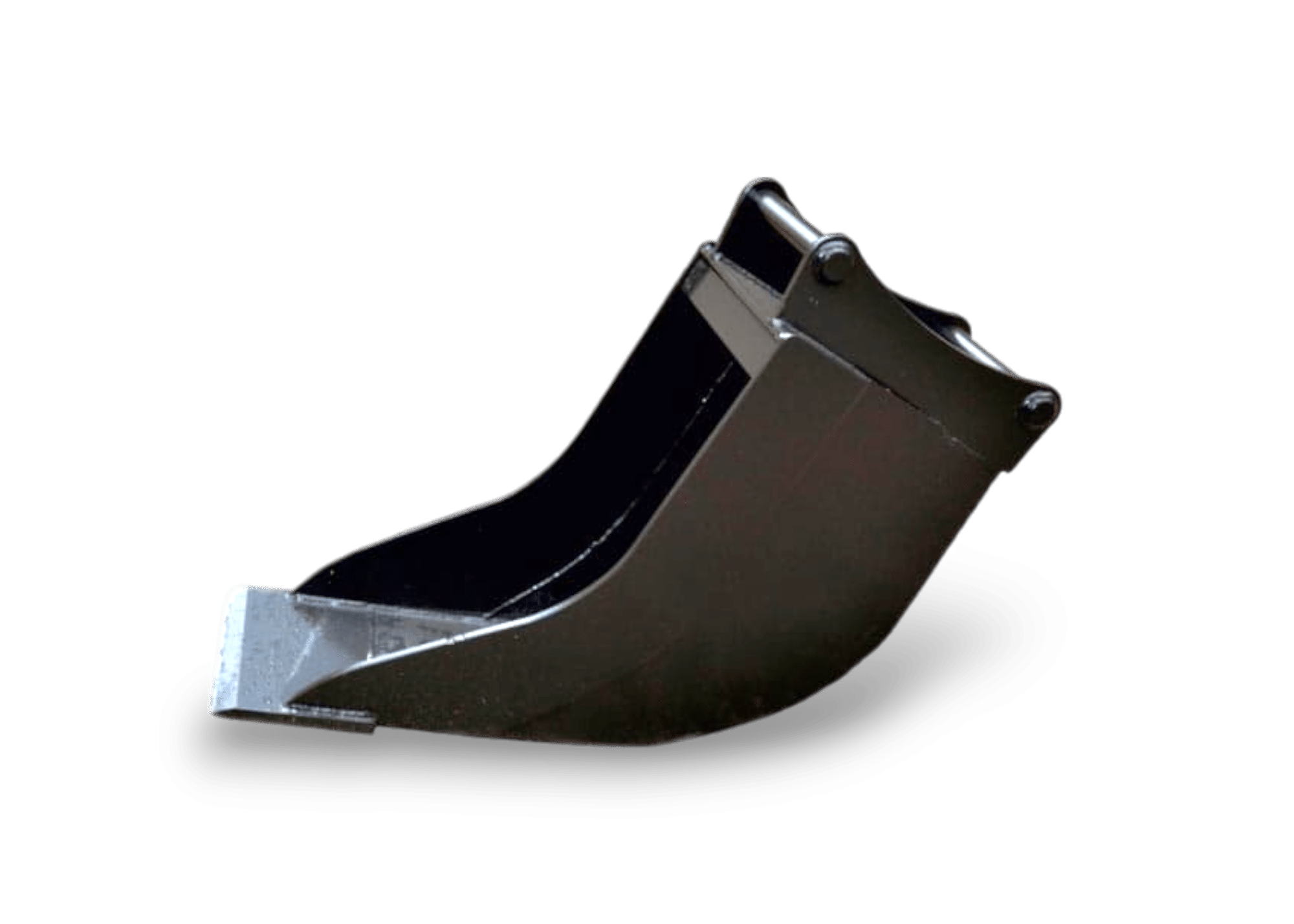

Cable trench bucket
Precise digging in narrow conditions
Cable trench buckets are specifically designed for making narrow trenches to avoid excessive digging and save material.

Cable trench bucketsTechnical specifications

Name Volume, L Machine class Blade Hitch type Weight
KD30HD 30 1,5-2,5t. 20*200*L320 S30/S40 55
KD35 35 2,5-5t 16*150*L220 S40 55
KD65 65 2,5-5t. 25*250*L320 S40 100
KD160 160 5-10t. 25*300*L350 S45 135
KD300 300 13-20t. 25*350*L300 S60/GJ300 300
KD 400 400 13-20t. 30*475*L200 NTP10 500
KD500 500 13-20t. 30*475*L300 NTP10/S60 525
KD600 600 13-20t. 30*475*L400 NTP10 550
KD1000 1000 20-25t. 40*525*L450 NTP20 880
Additional cost for special attachment
Polt/lock teeth #20 KD30HD/KD500

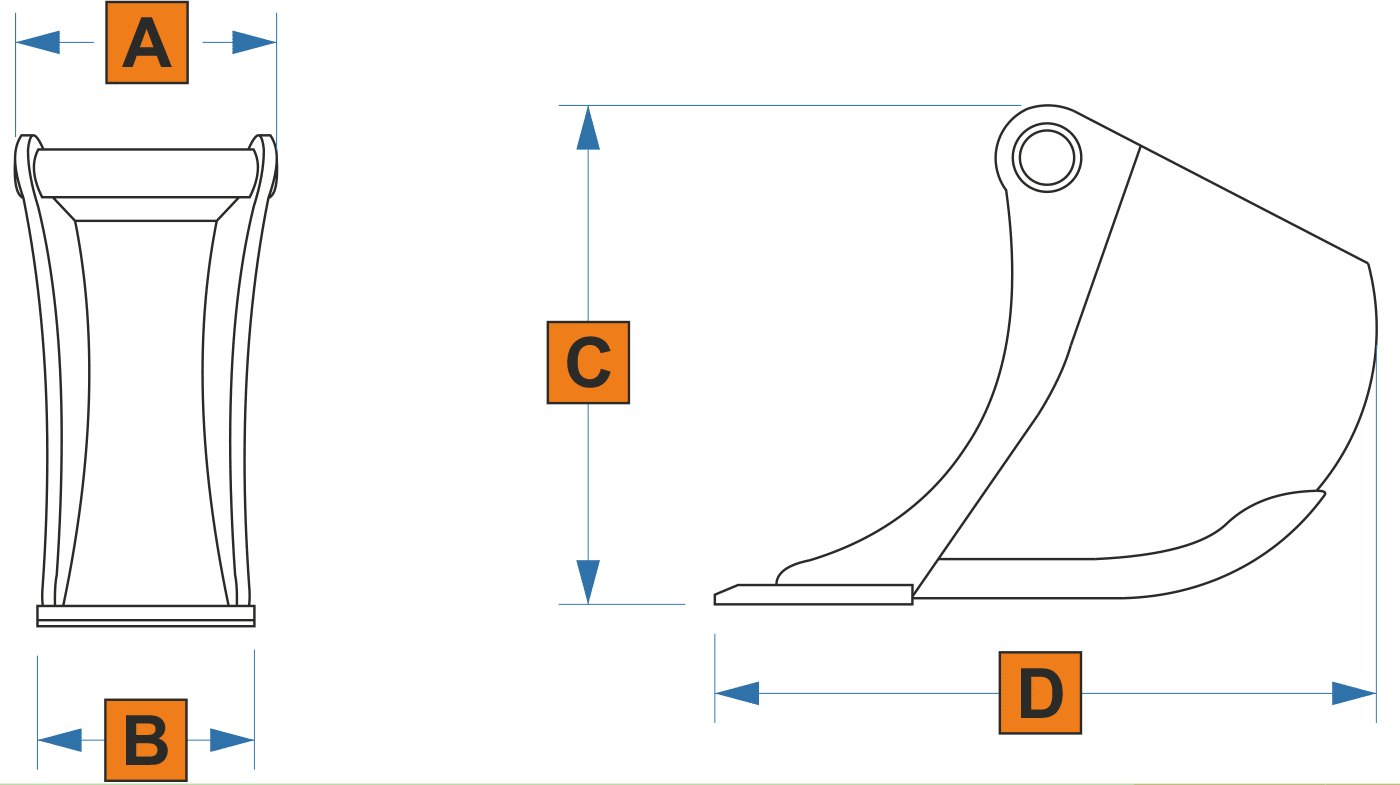

Name Machine class Blade Hitch type A (mm) B (mm) C (mm) D (mm)
KD30HD 1,5-2t,5. 20*200*L320 S30/S40 370 320 450 554
KD35 2,5-5t 16*150*L220 S40 217 220 494 865
KD65 2,5-5t 25*250*L320 S40 400 320 640 852
KD160 5-10t. 25*300*L350 S45 430 320 800 1130
KD300 13,-20t. 25*350*L300 S60/GJ300 600 300 1050 1300
KD400 13,-20t. 30*475*L200 NTP10 640 200 1260 1810
KD500 13,-20t. 30*475*L300 NTP10/S60 740 300 1260 1810
KD600 13,-20t. 30*475*L400 NTP10 740 300 1260 1810
KD1000 20-25t. 40*525*L450 NTP20 860 450 1640 2100
